Kvant Laser Array 10R200 W3 Red
Description

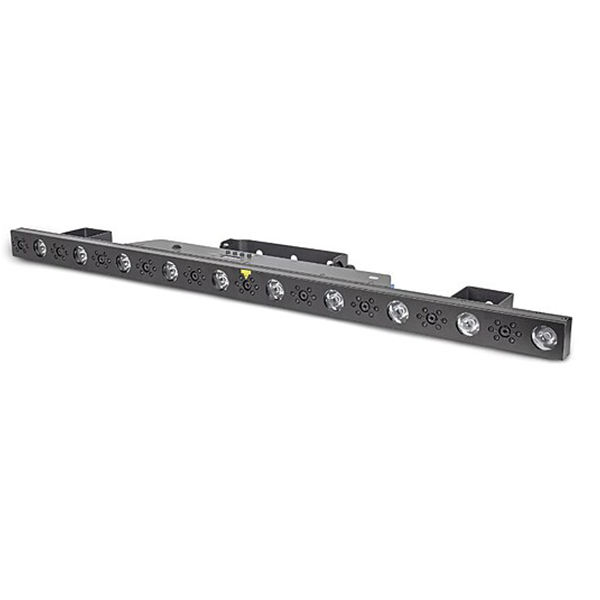

Kvant Laser LED Bar (RED)
The Kvant Laser LED Bar (RED) is a seven-diode laser bar, which also contains seven 3W white LED blinders between each laser for added effects. The laser bar is controlled via DMX512 or and can also be run in “Sound Active Mode”.
Specifications
Source | Type:Semiconductor laser diode | 10x static red laser beam | 10x 3-Watt LED blinder
Suitability:Indoor laser displays / Stage lightingSystem control:DMX512, Auto-mode, Sound-to-lightCompliant with:
EN 60825-1, Class 3BWeight [kg]:4Size [WxHxD, mm]:1000 x 50 x 166Guaranteed opt. output [mW]:200 [per each laser output]R | G | B [mW]:
200 | - | -Wavelengths [nm, ±5nm]:
638 | - | -Beam size [mm]:4Beam divergence [mrad]:
1.8 [full angle]Modulation [kHz] | type:30 | analogueX-Y scanners:-Power requirements [V] | Input:100-230/50-60Hz | Neutrik powerCONMax. power consumption [VA]:250Operation temperature [°C]:10-40Ingress Protection rating [IP]:20Included in the set:1.5M power lead, user manual.HW features:
-Laser safety features:
-note A-note B-
Description
Kvant Laser LED Bar (RED)
The Kvant Laser LED Bar (RED) is a seven-diode laser bar, which also contains seven 3W white LED blinders between each laser for added effects. The laser bar is controlled via DMX512 or and can also be run in “Sound Active Mode”.
Specifications
Source | Type:Semiconductor laser diode | 10x static red laser beam | 10x 3-Watt LED blinder
Suitability:Indoor laser displays / Stage lightingSystem control:DMX512, Auto-mode, Sound-to-lightCompliant with:
EN 60825-1, Class 3BWeight [kg]:4Size [WxHxD, mm]:1000 x 50 x 166Guaranteed opt. output [mW]:200 [per each laser output]R | G | B [mW]:
200 | - | -Wavelengths [nm, ±5nm]:
638 | - | -Beam size [mm]:4Beam divergence [mrad]:
1.8 [full angle]Modulation [kHz] | type:30 | analogueX-Y scanners:-Power requirements [V] | Input:100-230/50-60Hz | Neutrik powerCONMax. power consumption [VA]:250Operation temperature [°C]:10-40Ingress Protection rating [IP]:20Included in the set:1.5M power lead, user manual.HW features:
-Laser safety features:
-note A-note B-
Description
Kvant Laser LED Bar (RED)
The Kvant Laser LED Bar (RED) is a seven-diode laser bar, which also contains seven 3W white LED blinders between each laser for added effects. The laser bar is controlled via DMX512 or and can also be run in “Sound Active Mode”.
Specifications
Source | Type:Semiconductor laser diode | 10x static red laser beam | 10x 3-Watt LED blinder
Suitability:Indoor laser displays / Stage lightingSystem control:DMX512, Auto-mode, Sound-to-lightCompliant with:
EN 60825-1, Class 3BWeight [kg]:4Size [WxHxD, mm]:1000 x 50 x 166Guaranteed opt. output [mW]:200 [per each laser output]R | G | B [mW]:
200 | - | -Wavelengths [nm, ±5nm]:
638 | - | -Beam size [mm]:4Beam divergence [mrad]:
1.8 [full angle]Modulation [kHz] | type:30 | analogueX-Y scanners:-Power requirements [V] | Input:100-230/50-60Hz | Neutrik powerCONMax. power consumption [VA]:250Operation temperature [°C]:10-40Ingress Protection rating [IP]:20Included in the set:1.5M power lead, user manual.HW features:
-Laser safety features:
-note A-note B-
Additional Details
SKU:
Laser-LED Bar (RED)
UPC:
Condition:
New
Width:
40.00 (in)
Height:
6.00 (in)
Depth:
8.00 (in)
